TM 5-4320-218-15
(2) Screw the fitting into the strainer
body (1).
and Hand Primer Assembly
(3) Install the strainer body (1) into posi-
c. General. The fuel pump contains a flexi-
tion by screwing it into the fuel-pump
ble diaphragm which acts to pump fuel from
connection.
the fuel tank to the carburetor. The diaphragm
(4) Connect the fuel line to the fitting.
is pulled down by a rocker arm and link which
(5) Install the sediment bow] (5), gasket
is actuated by the plunger in the fuel-pump
(3), and filter element (4), and se-
adapter. A spring forces the diaphragm back
cure by means of the clamp assembly
up to force fuel to the carburetor. The adapter
(6). Check the entire fuel strainer as-
contains a plunger that rides on an eccentric of
sembly and be sure that it is correctly
the camshaft, and a built-in lever for hand
assembled and installed and that each
priming the carburetor.
connection is tight.

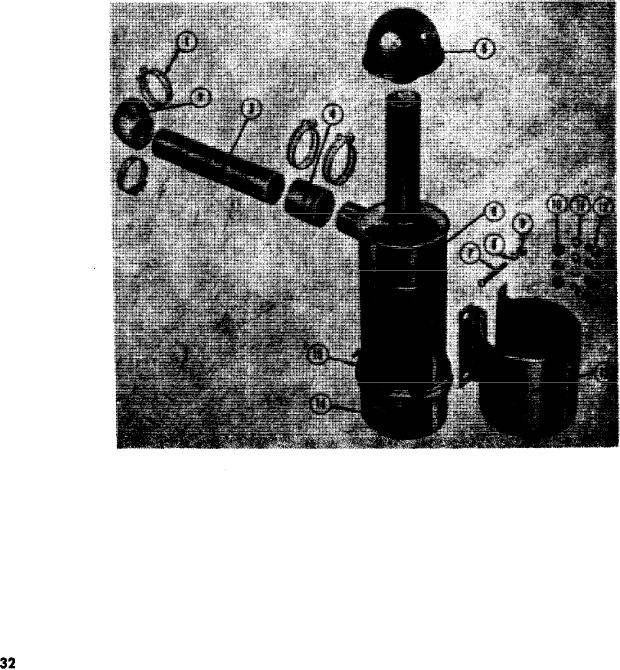

9 Hex nut
1
Hose clamp
10
Hex nut
2
Elbow
11
Lockwasher
3
Air tube
12
Cap screw
4
Hose
13
Mounting strap
5
Cap
14
Oil cup
6
Body
15
Oil cup clamp
7
Screw
8
Lockwasher
