REMOVAL - Continued
6
7 8, 9, 10 11
Figure 2. High Tank Level Switch Removal.
END OF TASK
INSTALLATION
1.
Install high tank level switch (Figure 3, Item 6) on backing plate (Figure 3, Item 11) with retaining brackets
(Figure 3, Item 7), screws (Figure 3, Item 8), lockwashers (Figure 3, Item 9), and nuts (Figure 3, Item 10).
6
7 8, 9, 10 11

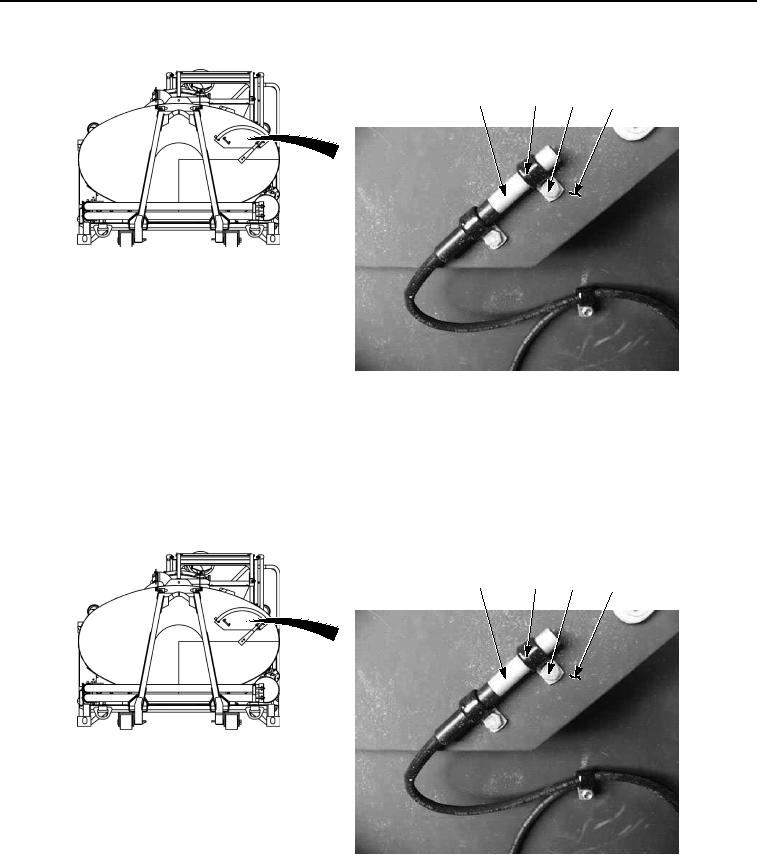

Figure 3. High Tank Level Switch Installation.
2.
Install switch harness (Figure 4, Item 5) on two studs (Figure 4, Item 2) with retaining clips (Figure 4, Item 4)
and locknuts (Figure 4, Item 3).
