TM 5-3825-270-23&P
FIELD MAINTENANCE
AIR VALVE COVER PLATE REPLACEMENT
INITIAL SETUP:
Tools and Special Tools
References
Tool Kit, General Mechanic's: Automotive
Parts Manual (WP 0220) Figure 4014
(WP 0225, Table 1, Item 12)
Materials/Parts
Locknut (WP 0226, Table 1, Item 56) Qty: 2
REMOVAL

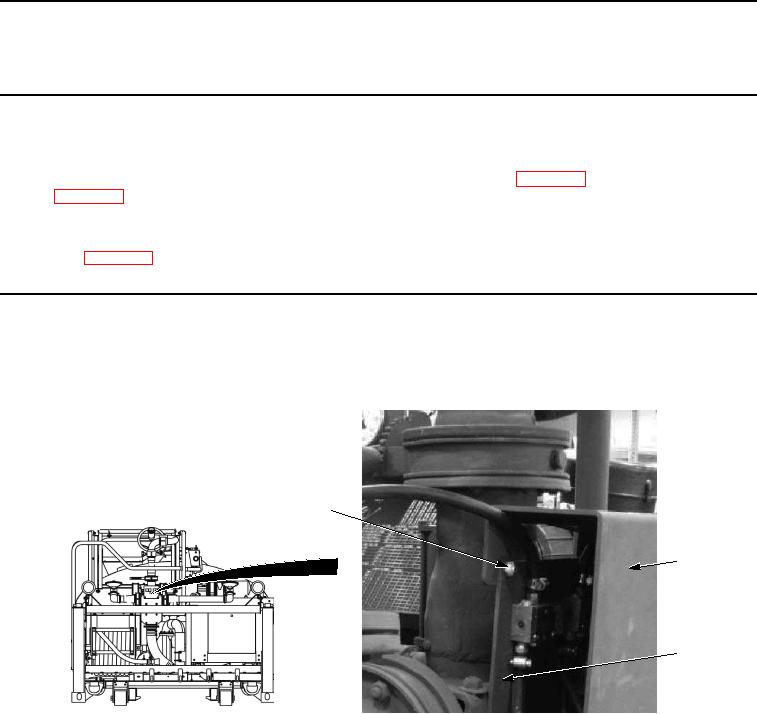

Remove two locknuts (Figure 1, Item 1), washers (Figure 1, Item 2), screws (Figure 1, Item 3), and air valve
cover plate (Figure 1, Item 4) from bracket (Figure 1, Item 5). Discard locknuts.
1, 2, 3
4
5
Figure 1. Air Valve Cover Plate Removal.
END OF TASK
INSTALLATION
Install air valve cover plate (Figure 2, Item 4) on bracket (Figure 2, Item 5) with two screws (Figure 2, Item 3),
washers (Figure 2, Item 2), and locknuts (Figure 2, Item 1).
