DISASSEMBLY - Continued
1
14
13

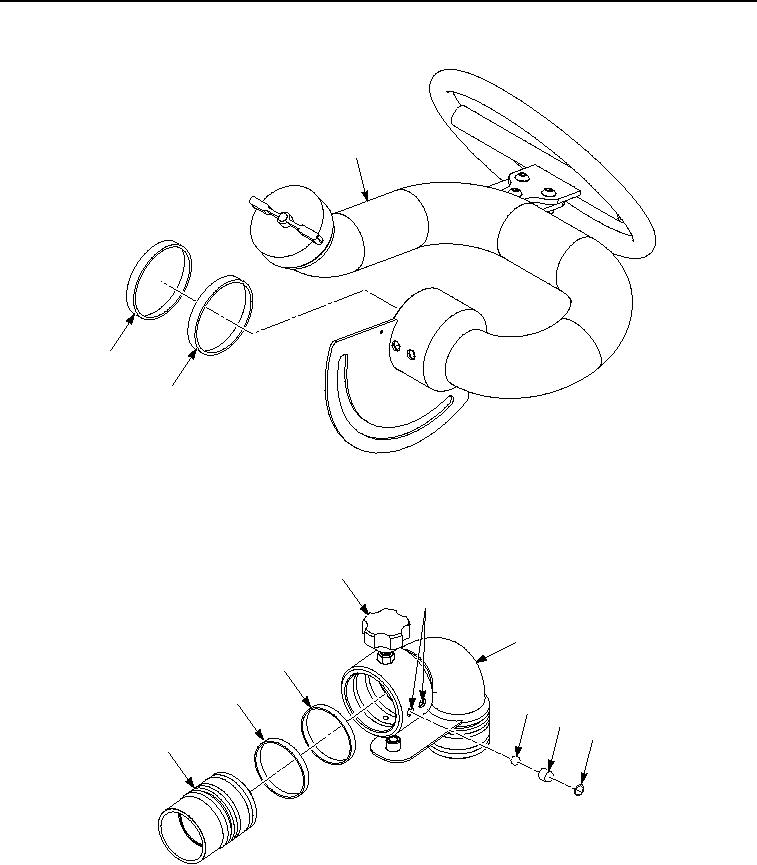

Figure 7. Water Turret Disassembly.
8.
Remove pressure seal (Figure 7, Item 13) from upper water turret tube (Figure 7, Item 1). Discard seal.
9.
Remove sealant from two holes (Figure 8, Item 19) in lower water turret tube (Figure 8, Item 12).
18
19, 20
12
17
16
21
22
23
15
Figure 8. Water Turret Disassembly.
10.
Remove two retaining rings (Figure 8, Item 23) from two holes (Figure 8, Item 19) in lower water turret tube
(Figure 8, Item 12). Discard retaining rings.
11.
Remove two ball bearing retaining plugs (Figure 8, Item 22) from lower water turret tube (Figure 8, Item 12).
Discard retaining plugs.
