FILL
WARNING
Prolonged contact with lubricating oil may cause skin rash. Immediately wash skin and
clothing thoroughly and remove saturated clothing that comes in contact with lubricating oil.
Keep area well-ventilated to keep fumes at a minimum. Failure to comply may result in injury
or death to personnel.
1.
Lightly lubricate gasket (Figure 5, Item 4) on new oil filter (Figure 5, Item 2) with clean oil.
5
7
4
5

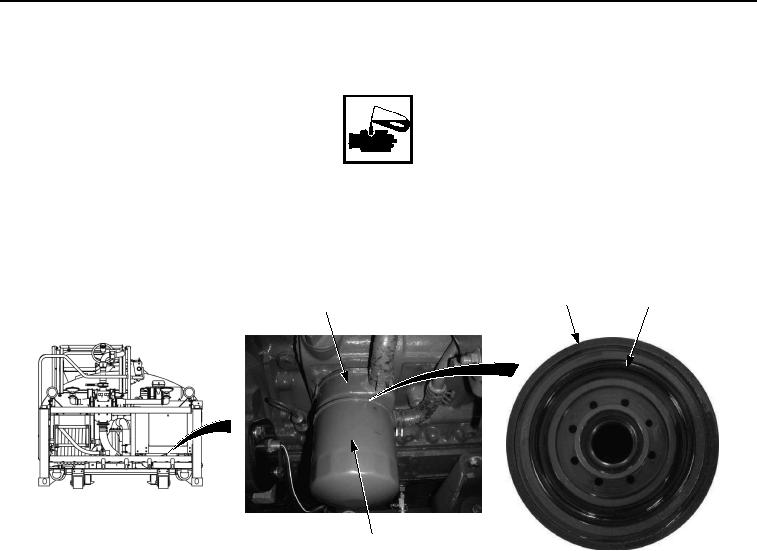

Figure 5. Engine Oil Service.
CAUTION
Do not use universal chain wrench to tighten oil filter on oil assembly cooler. Failure to comply
may result in damage to equipment.
2.
Install oil filter (Figure 5, Item 2) on oil cooler assembly (Figure 5, Item 1) until gasket contacts oil cooler
assembly. Tighten oil filter another -turn by hand.
WARNING
Prolonged contact with lubricating oil may cause skin rash. Immediately wash skin and
clothing thoroughly and remove saturated clothing that comes in contact with lubricating oil.
Keep area well-ventilated to keep fumes at a minimum. Failure to comply may result in injury
or death to personnel.
3.
Remove oil fill cap (Figure 6, Item 8) from engine block (Figure 6, Item 10).
