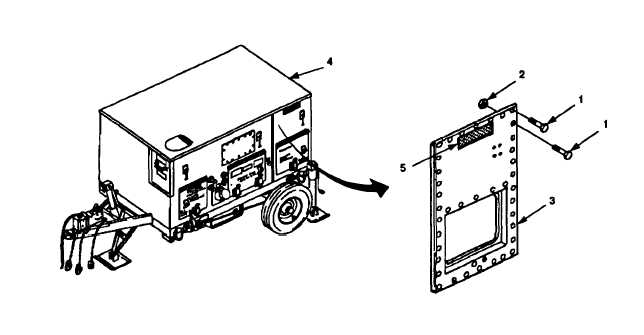

2.12.9 Left Rear Quarter Panel Assembly Maintenance, Model 609-C.This task covers:2.12.9.1 Removal2 .12 . 9 . 3 R e p a ir2 .12 . 9 . 2 I n s p e c t i o n2 .12 . 9 . 4 I n s t a l l a t i onINITIAL SETUPToolsGeneral Mechanic’s AutomotiveTool Kit, Appendix B, SectionIII, Item 1Equipment ConditionsPumping station shut down, TM10-4320-344-10.Battery Compartment Door Assemblyremoved, paragraph 2.12.3.EquipmentConditions(Continued)Top Panel Assembly removed,p a r a g r a p h 2 . 1 2 . 4.General Safety InstructionsTo prevent rolling or sliding, do not workon equipment that is not securelys t a b i l i z e d.Do not work on equipment without followingstandard shop safety precautions.2.12.9.1 Removal.Figure 2-20.Left Rear Quarter Panel Assembly.Some left side panel assembly mounting screws are secured with nuts.Marklocation of screw and nut combinations to facilitate reinstallation.a.Remove screws (Figure 2-20,1) and nuts (2) from left rear quarter panelassembly (3).Mark location of screw and nut screw combinations.b .Remove left rear quarter panel assembly (3) from pumping assembly (4).2-64TM 10-4320-344-24
