2.16.36 Control Panel Maintenance, Model 609-A.

Figure 2-93. Pressure Gauge Hose Assembly Diagram, Model US636HCCD-1.

TM-10-4320-344-24 Pump Assembly Water 600 GPM Model 609-A (NSN 4320-01-184-7494) Model 609-C (NSN 4320-01-261-6470) Model US636HCCD-1 Manual
Page Navigation
237

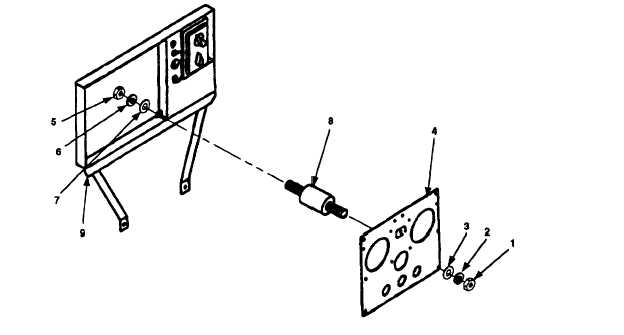

TM 10-4320-344-24 2.16.36 Control Panel Maintenance, Model 609-A. This task covers: 2.16.36.1 Removal 2.16.36.3 Installation 2 . 1 6 .3 6 . 2 R e p a ir INITIAL SETUP Tools General Mechanic’s Automotive Tool Kit, Appendix B, Section III, Item 1 Material/Parts Lock Washers (TM 10-4320-344-24P) Rivets (TM 10-4320-344-24P) Equipment Conditions Pumping station shut down, TM 10-4320- 344-10. Battery disconnected, paragraph 2.15.2. Control Panel Cover Assembly removed, paragraph 2.16.1. Ground Wires disconnected, paragraph 2 . 1 6 . 3. Pump Suction and Discharge Gauges removed, paragraph 2.16.7. Equipment Conditions (Continued) Oil Pressure Gauge removed, paragraph 2.16.10. Engine Coolant Temperature Gauge removed, paragraph 2.16.11. Ammeter removed, paragraph 2.16.12. Tachometer/Hourmeter removed, paragraph 2.16.13. Engine Alarm removed, paragraph 2.16.15. Engine Alarm Reset removed, paragraph 2.16.17. General Safety Instructions Do not work on equipment that is not securely stabilized to prevent rolling or s l i d i n g. Do not work on equipment without following standard shop safety precautions. 2.16.36.1 Removal. Figure 2-94. Control Panel Maintenance, Model 609-A. 2-226
