TM 10-4320-307-24
4-12

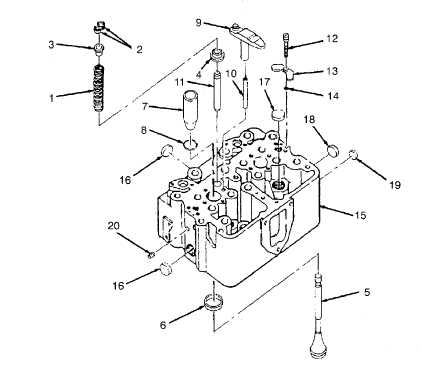

CYLINDER HEAD ASSEMBLY REPAIR (CONT).
2.
Compress valve springs (1), remove two valve collets (2) and valve spring guide (3).
3.
Release valve spring compressor and
remove valve
spring (1) valve spring guide (4).
4.
Remove valve (5).
5.
Remove valve seat (6), if required.
6.
Remove injector sleeve (7) and injector O-ring (8).
7.
Remove crossheads (9).
8.
Remove crosshead guide (10).
9.
Remove valve
guide (11), if required.
10.
Remove capscrew (12) securing cover plate (13) and O-ring (14) to cylinder head (15).
11.
Remove two
expansion plugs
(16).
12.
Remove expansion plug (17).
13.
Remove six
expansion plugs
(18).
14.
Remove three pipe plugs (19).
15.
Remove expansion plug (20).
4-89
