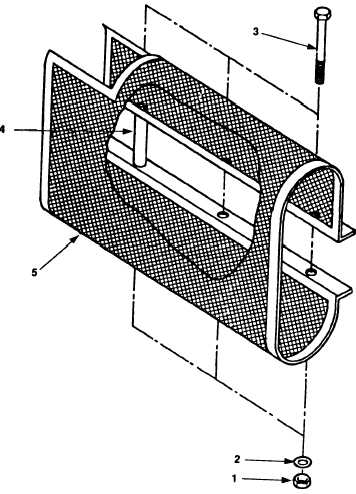

TM 10-4320-226-144.9.2 Exhaust Heat Shield Maintenance.This task covers: 4.9.2.1 Removal4.9.2.3 Installation4.9.2.2 InspectionINITIALSETUPToolsGeneral Mechanic’s Tool Kit (appendix B,Section III, Item 1)GeneralSafety InstructionsTo prevent rolling or sliding, do notwork on equipment that is not securelystabilized.Material/PartsLockWashers (TM 10-4320-226-24P)Washers (TM 10-4320-226-24P)EquipmentConditionsEquipment shut down, refer toparagraph 2.5.2.Spark arrestor removed, 4.9.1.Do not touch exhaust system aftershutting down engine.Allow time forexhaust to cool.DO not work on equipment withoutfollowing standard shop safetyprecautions.4.9.2.1 Removal.Figure 4-3.Exhaust Heat Shield Maintenance.4-13
