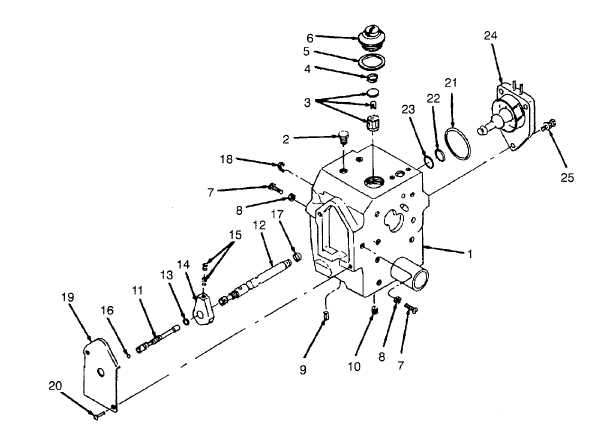

TM 10-4320-307-244-9FUEL PUMP ASSEMBLY REPAIR/CALIBRATE (CONT).ASSEMBLY:1.Install fuel pump housing (1) as follows:a.Install plug (2).b.Install fuel filter screen assembly (3), filter spring (4), cap seal ring (5), and fuel screen cap (6).c.Install stop adjusting screws (7) and nuts (8).d.Install governor barrel clip (9) and plug (10).e.Install fuel adjusting screw (11) into throttle shaft (12).f.Install O-ring (13).g.Install throttle stop control (14) and two setscrews (15).h.Install tamperproof ball (16) in throttle shaft (12).i.Install throttle shaft (12) and O-ring (17) into fuel pump housing (1) and secure using retaining ring (18).j.Position throttle shaft cover (19) on fuel pump housing (1) and secure using two drive pins (20).k.Position O-ring seals (21, 22, and 23) on actuator (24) and secure to fuel pump housing (1) using three captive washer screws (25).4-62
